01
2300 mm, floor to canopy
There is no gap above the rotor and none below it. Every other barrier type asks a determined person not to climb; a full-height turnstile removes the option entirely, which is why it holds perimeters rather than lobbies.
Full Height Turnstile · KFH
Full Height Turnstiles
Where the barrier has to be the wall. A floor-to-ceiling rotor that cannot be climbed, crawled under or reached over — for perimeters that are unstaffed, unlit and unsupervised.
360° · 3D model
Loading 3D model0%
Drag to rotate
A wall that turns.
A full 3D model of a Keyable full height turnstile. Drag to rotate it, scroll or pinch to zoom.
Finish
Painted SteelMetal · colour paint
Also available in brushed stainless steel (SUS304).
At a glance
- Rotation90° / 120°
- Passage650 mm
- Arm length600 mm
- DriveMagnet + hydraulic
Key Features
The only barrier that is also a fence.
02
650 mm, one compartment
Three rotor sections divide the drum into compartments of 650 mm. Two people cannot share one; the geometry does not permit it, with or without a sensor watching. Rotation is offered at 90° or 120° depending on how the site prefers to meter flow.
03
Magnet drive, damped return
A semi-automatic magnet drive releases the rotor on authorisation and a hydraulic buffer brings it to rest. The result is a rotor that turns under its own hand pressure but never slams — important on a mechanism this heavy and this exposed.
04
Released for evacuation
On power loss or an alarm signal the rotor is released to turn freely in the exit direction, so the perimeter that could not be climbed can still be left. Bi-directional control means the same structure meters entry and never obstructs escape.
The Range
6 models in the full height turnstile family.
Shared electronics, readers and control across the family. What changes is the housing, the finish and the setting each one is built for. Technical figures as published by the manufacturer; a model without figures has not had them published rather than estimated.

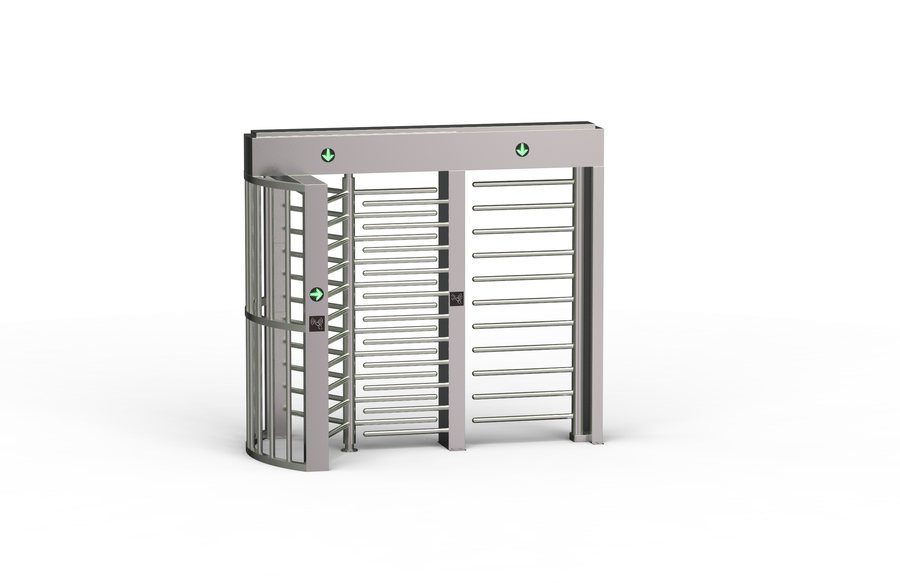

KFH2515HYAccessible entrance, hybrid
- Finish
- SUS304
- Passage
- 600 mm
- Drive
- Semi-automatic + hydraulic buffer

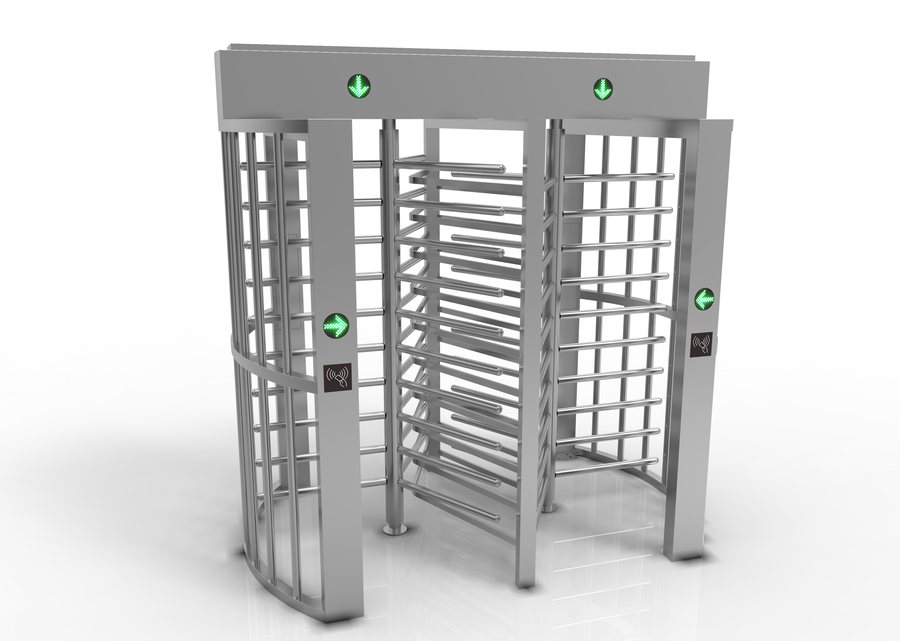

KFH2315Public infrastructure
- Size
- 2300 × 1500 × 2300
- Finish
- SUS304
- Passage
- 650 mm
- Drive
- Semi-automatic + hydraulic buffer

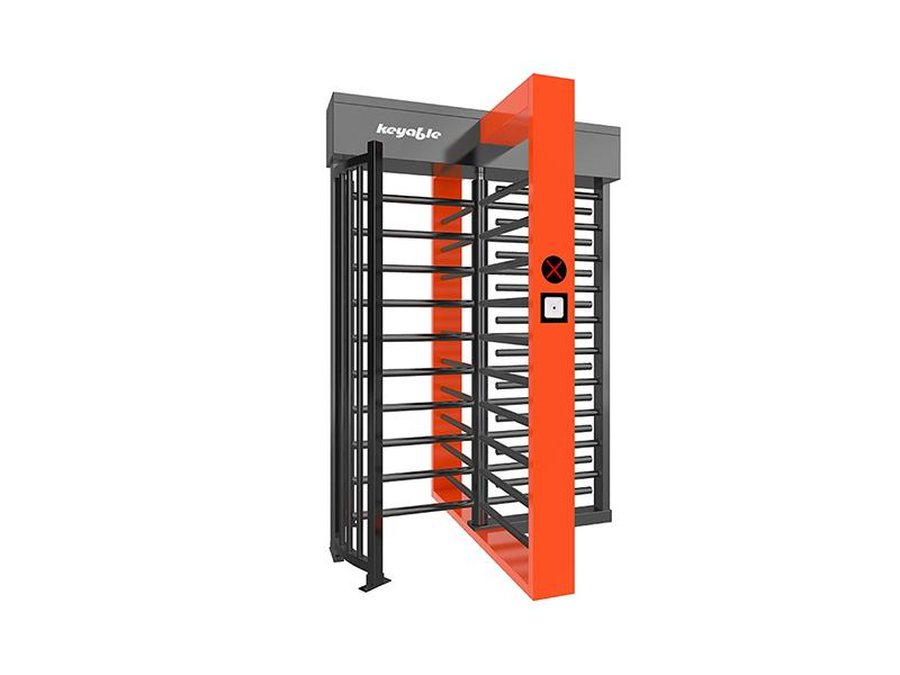

KFH1061Construction site
- Size
- 1500 × 1600 × 2300
- Finish
- Metal, colour paint
- Passage
- 550–600 mm
- Drive
- Semi-automatic magnet + hydraulic buffer
Common Questions
Answers, briefly.
What is a full height turnstile?
A full height turnstile is a floor-to-ceiling rotating barrier, 2300 mm tall, enclosed within a rigid frame. Because there is no gap above or below the rotor, it cannot be climbed or crawled under.
How tall is a full height turnstile and how wide is the passage?
The structure is 2300 mm tall with a compartment of 650 mm and arms of 600 mm. Footprints run from 1450 × 1450 mm for a single lane to 2500 × 1450 mm for a double.
What is the difference between a single and a double full height turnstile?

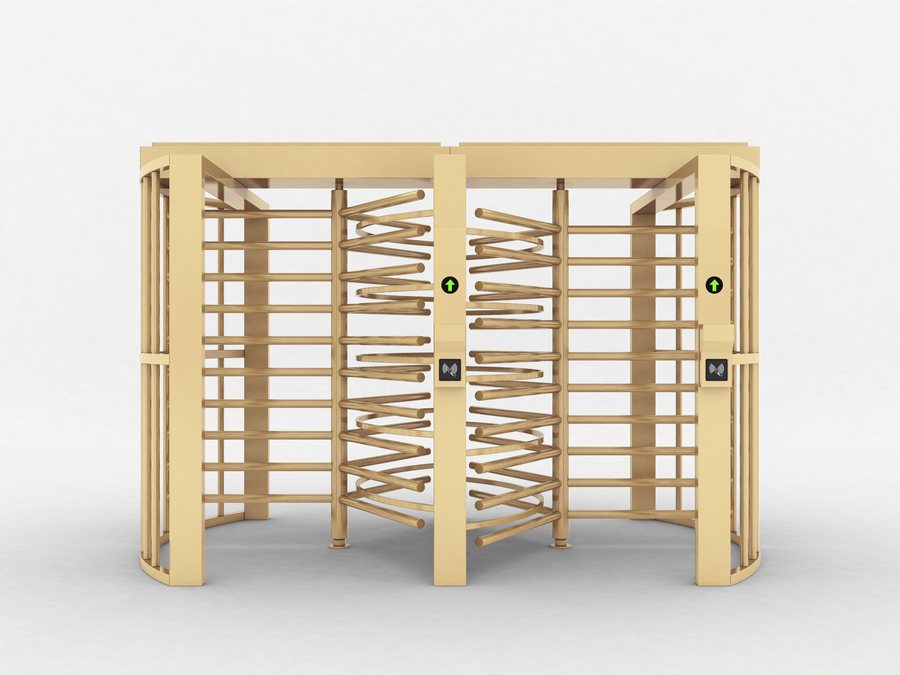

A single unit carries one rotor and one lane. The double configurations carry two rotors in one structure sharing a central post, doubling capacity for roughly one and a half times the footprint.
Can people still get out in an emergency?
Yes. On power loss or an alarm signal the rotor is released to turn freely in the exit direction, so a perimeter that cannot be climbed can still be left.
Complete the Lane
A barrier, a reader and a base.
Readers & Controllers
The signal that opens the lane
Barriers are supplied without readers. QR scanners, RFID and NFC readers, controllers and displays are chosen for each lane.
See readers and controllers →Barrier Pedestals
A base made for the barriers
Where the floor is not suitable for fixing, the barriers stand on a pedestal made to measure, for any type of barrier.
See barrier pedestals →
How We Deliver
Three ways to work with us.
Every model in the range is available as a supply-only order, as an installation integrated with the system you already use, or as a complete working solution. The choice is commercial, not technical — the hardware is identical.
01 — Equipment Supply
Hardware for your own integration
You already have an integrator, an access platform and a programme. We deliver the equipment and the paperwork, and stay out of the way.
- Barriers, readers and controllers
- Technical datasheets and dimensioned drawings
- CE marking and EN 17352 declaration
- Delivery to site, anywhere in Europe
- Manufacturer warranty
- Spare parts held in Europe
02 — Installation & Integration
Integrated with the system you already use
We install, commission and integrate Keyable full height turnstiles with virtually any professional access-control platform capable of exchanging the required commands and credentials. You keep your software; only the entrance changes.
- Everything in supply, plus:
- Site survey
- Installation and mechanical fixing
- Commissioning
- Integration with your existing access-control platform
- Staff handover and documentation
03 — Full-Service Solution
Everything, as one contract
One point of responsibility from site survey and commissioning through long-term local service support. You approve a design and take delivery of a working entrance.
- Everything in installation, plus:
- Software: entitlements, ticketing, attendance, occupancy
- QR, NFC and RFID identification
- Scheduled maintenance and online support
- Local after-sales service
- Extended warranty on the installed system
All three models cover the full range: speed gates, swing, flap and sliding barriers, tripod, full height and half height turnstiles. Scope, response times and warranty terms are set per project and confirmed in the quotation.
