01
Up to 1000 mm of passage
The KSB1312TD opens a lane of up to 1000 mm and the KSB1418D up to 1100 mm — wide enough for wheelchairs, luggage, pushchairs and equipment without a separate accessible gate beside it.
Swing Barrier · KSB
Swing Barriers
The most generous passage in the range. Wide glass arms that welcome rather than restrict — accessible by design, and offered in finishes from brushed steel to mirror and champagne gold.
360° · 3D model
Loading 3D model0%
Drag to rotate
A passage, not a barrier.
A full 3D model of a Keyable swing barrier. Drag to rotate it, scroll or pinch to zoom.
Finish
Black Powder-CoatPowder-coat · black
Also available in mirror electroplated, champagne gold, brushed stainless (SUS304) and custom powder-coat colours.
At a glance
- DriveBrushless
- Passage550–1000 mm
- Power110–240 VAC
- CommsTCP/IP · HTTP
Key Features
Width, without compromise.
02
Four finishes, one form
Mirror electroplate, champagne gold, brushed SUS304 or powder coat in a colour of your choosing. The KSB1518 and KSB1418TDP carry an anti-fingerprint treatment, and both are rated for indoor and outdoor use.
03
Ambient light as guidance
A variable LED strip runs the length of the body, signalling state without shouting it — available across the 1518, 1418TDP, 1322W, 1418D and 1312TD variants.
04
Fail-open by law
On power loss or evacuation the arms release to free passage, as EN 17352 requires for escape routes. On the widest variants that means a 1000 mm opening — a genuine evacuation route, not a token gap.
The Range
18 models in the swing barrier family.
Shared electronics, readers and control across the family. What changes is the housing, the finish and the setting each one is built for. Technical figures as published by the manufacturer; a model without figures has not had them published rather than estimated.

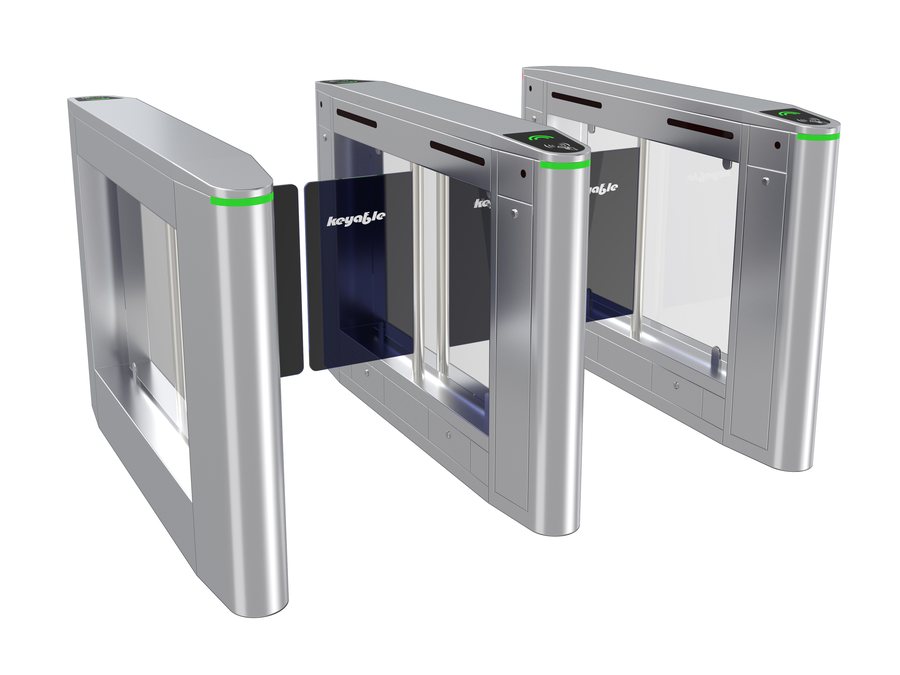

KSB1518Campus and public facilities
- Size
- 1500 × 180 × 1000
- Finish
- Electroplated stainless steel, anti-fingerprint
- Passage
- 600–1000 mm
- Drive
- Brushless motor
- Opens
- 0.9 s (adj.)

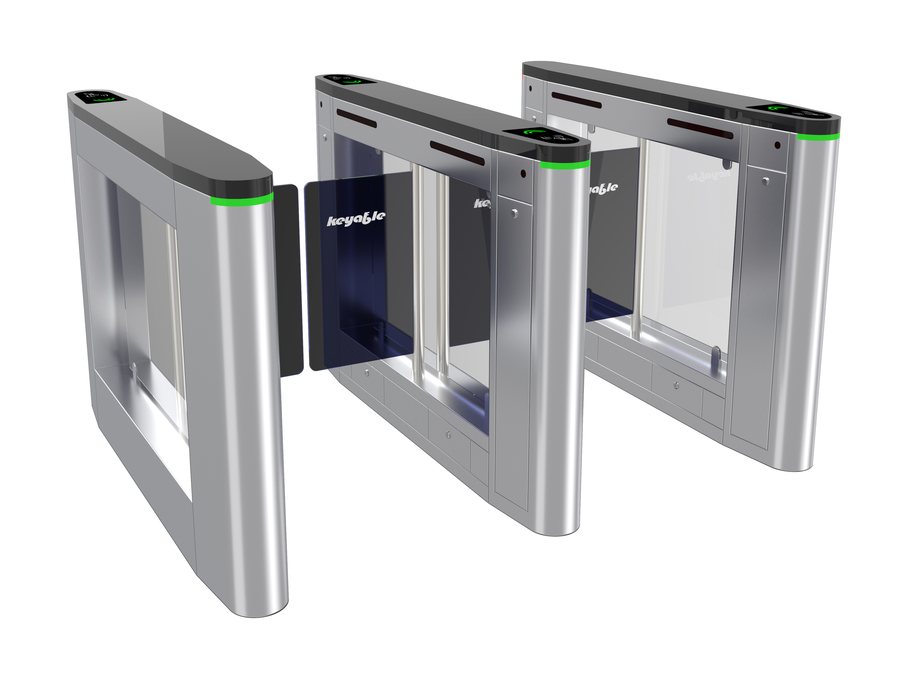

KSB1518-BSHigh-end electroplated, government
- Size
- 1500 × 180 × 1000
- Finish
- Electroplated stainless steel, anti-fingerprint
- Passage
- 600–1000 mm
- Drive
- Brushless motor
- Opens
- 0.9 s (adj.)
KSB1518-BGMirror finish, commercial
- Size
- 1500 × 180 × 1000
- Finish
- Electroplated stainless steel, anti-fingerprint
- Passage
- 600–1000 mm
- Drive
- Brushless motor
- Opens
- 0.9 s (adj.)

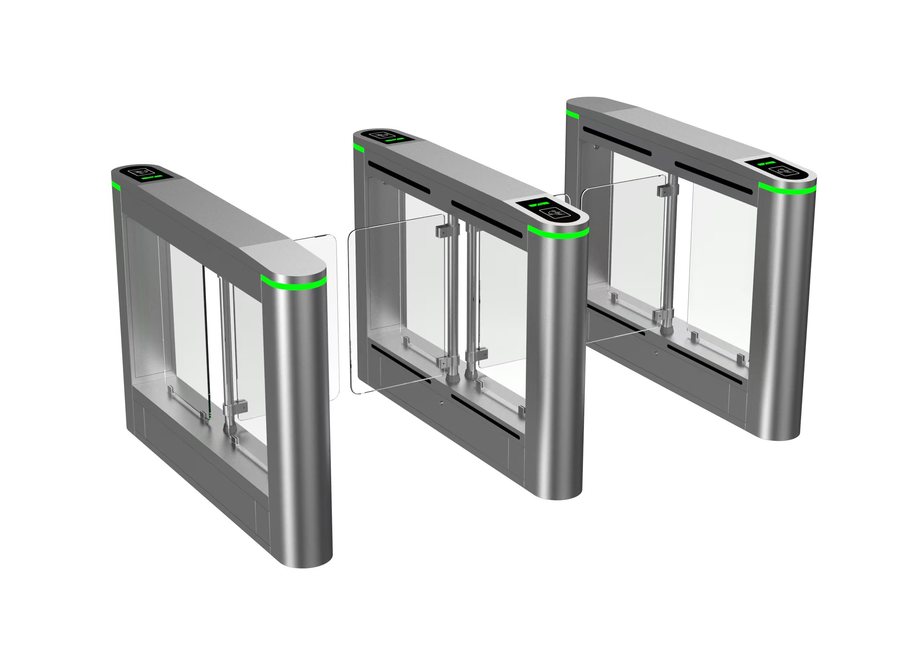

KSB1418Factory and warehouse entry
- Size
- 1400 × 180 × 980
- Finish
- SUS304
- Passage
- 650–1000 mm
- Drive
- Brushless motor
- Opens
- 0.9 s (adj.)

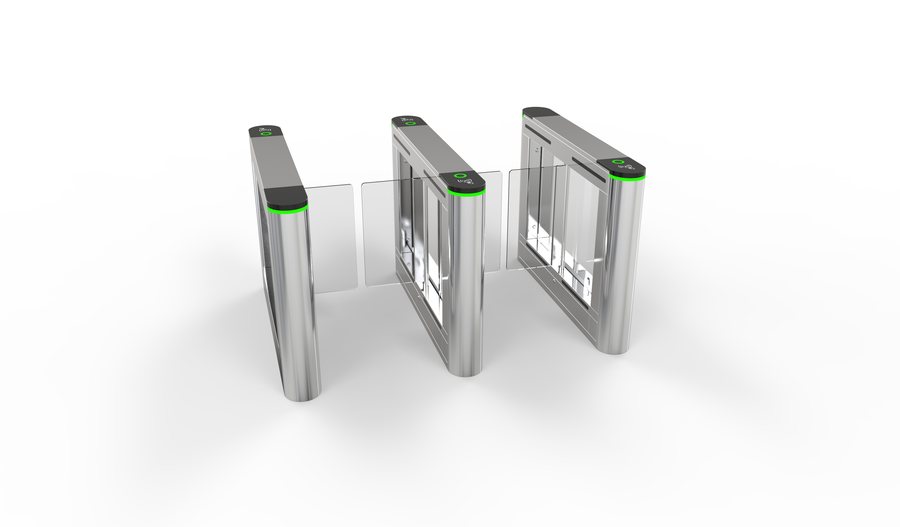

KSB1418RCommercial buildings
- Size
- 1400 × 180 × 1000
- Finish
- SUS304
- Passage
- 600–850 mm
- Drive
- Brushless motor
- Opens
- 0.9 s (adj.)

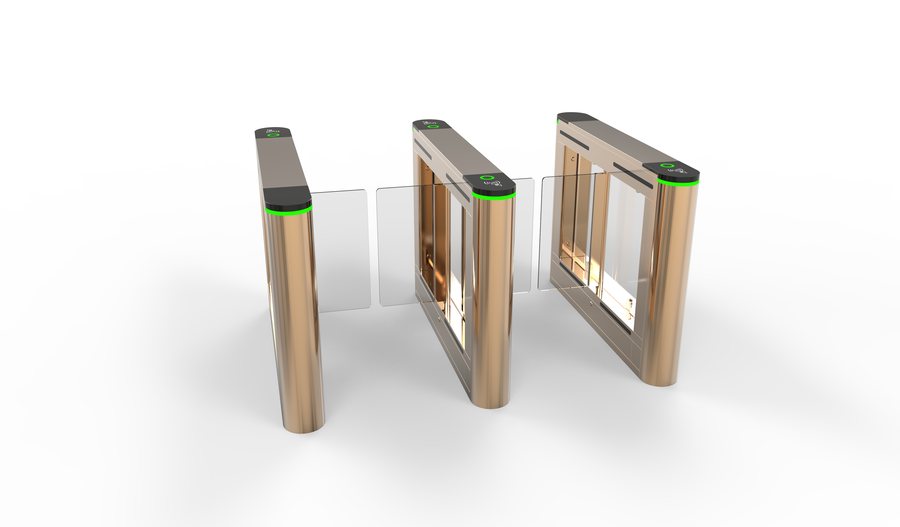

KSB1418R-GAnti-fingerprint electroplated, premium
- Size
- 1400 × 180 × 1000
- Finish
- Electroplated stainless steel, anti-fingerprint
- Passage
- 600–850 mm
- Drive
- Brushless motor
- Opens
- 0.9 s (adj.)

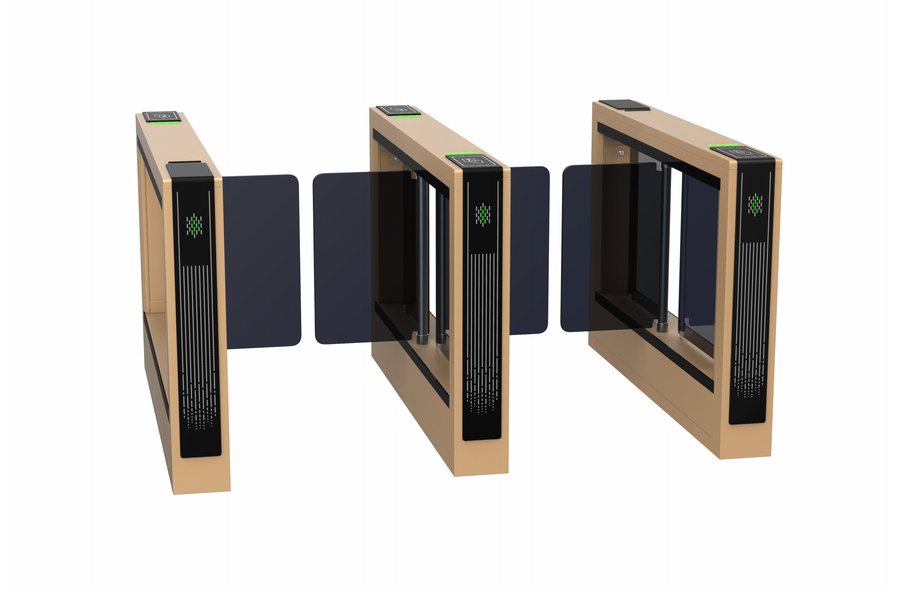

KSB1418TDP-GDurable painted, shopping mall
- Size
- 1400 × 180 × 1000
- Finish
- Metal, powder coated, anti-fingerprint
- Passage
- 600–1000 mm
- Drive
- Brushless motor
- Opens
- 0.7 s
KSB1418TDP-WPremium powder coated, government
- Size
- 1400 × 180 × 1000
- Finish
- Metal, powder coated, anti-fingerprint
- Passage
- 600–1000 mm
- Drive
- Brushless motor
- Opens
- 0.7 s

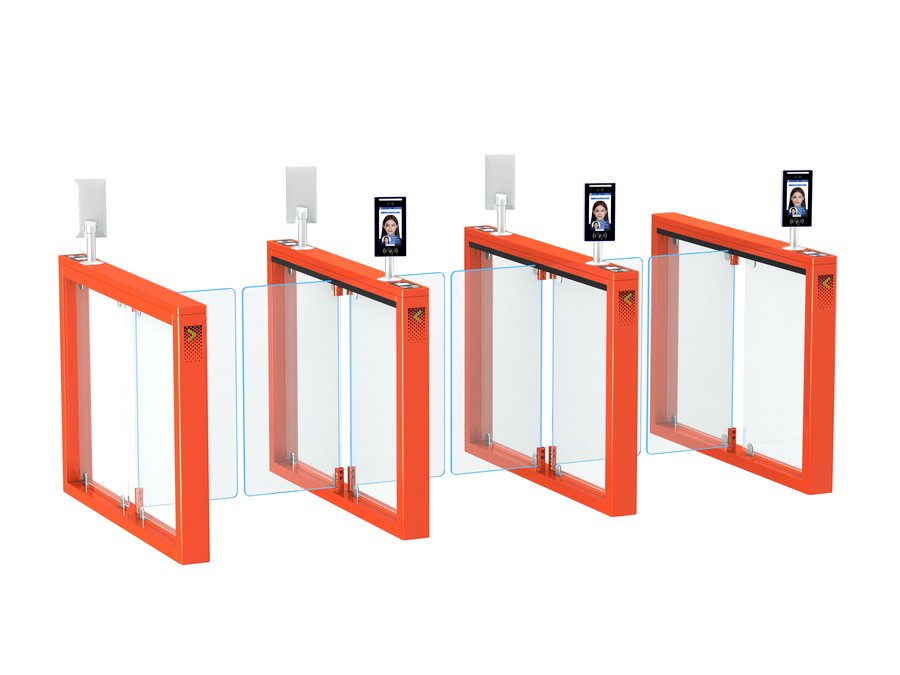

KSB1412-RFace recognition, smart buildings
- Size
- 1400 × 120 × 1000
- Finish
- Cold-rolled plate, colour paint
- Passage
- 600–1000 mm
- Drive
- Brushless motor
- Opens
- 0.9 s

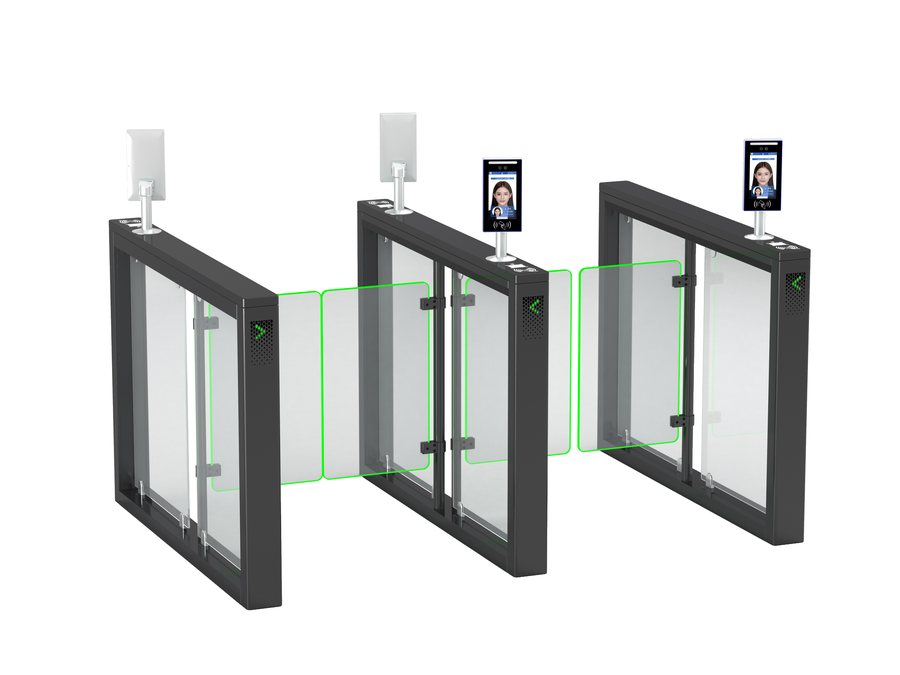

KSB1412-BFace recognition, offices
- Size
- 1400 × 120 × 1000
- Finish
- Electroplated stainless steel, anti-fingerprint
- Passage
- 600–1000 mm
- Drive
- Brushless motor
- Opens
- 0.9 s

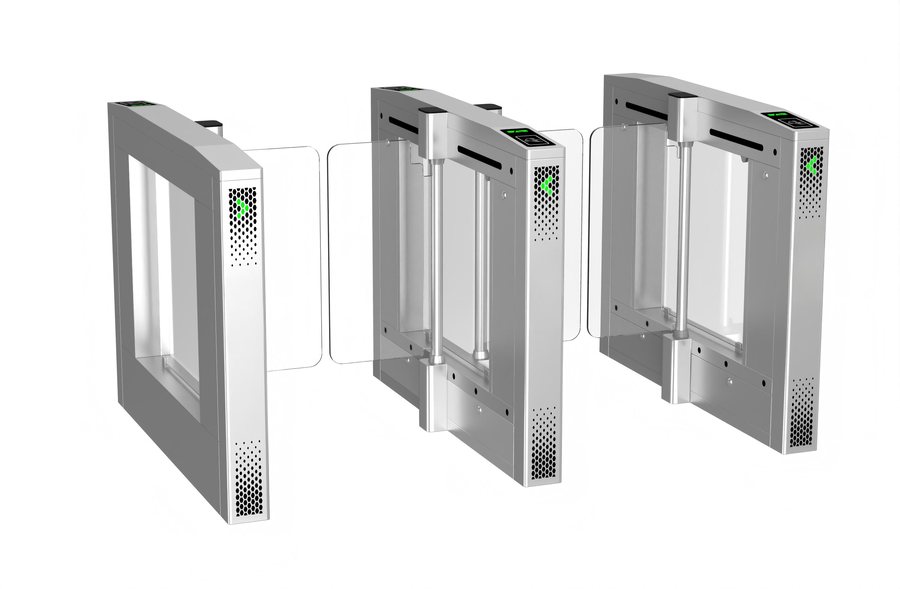

KSB1312TDStandard, office access
- Size
- 1300 × 120 × 1000
- Finish
- SUS304
- Passage
- 650–1000 mm
- Drive
- Brushless motor
- Opens
- 0.9 s (adj.)

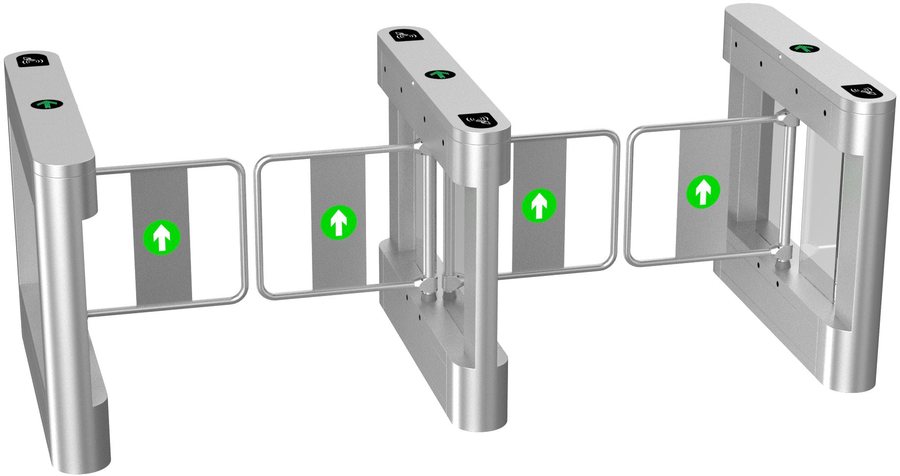

KSB1218Wide lane, wheelchair access
- Size
- 1200 × 180 × 980
- Finish
- SUS304
- Passage
- 600–1000 mm
- Drive
- Brushless motor
- Opens
- 0.9 s (adj.)

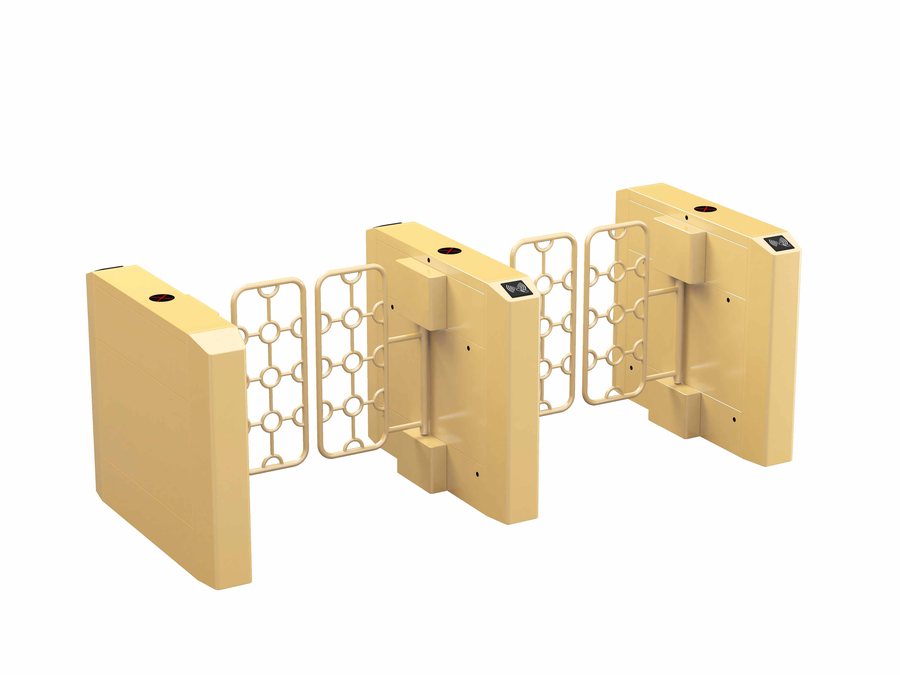

KSB1200H-GExtended height anti-climb, industrial
- Finish
- Electroplated stainless steel, anti-fingerprint
- Passage
- 600–1000 mm
- Drive
- Brushless motor
- Opens
- 1 s (adj.)

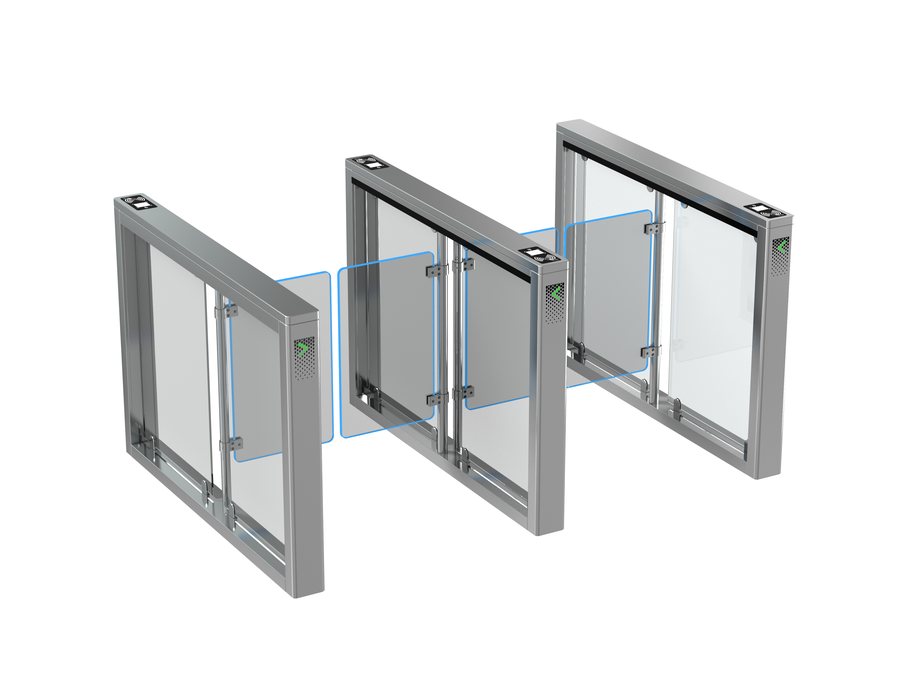

KSB1412QR ticketing, attractions
- Size
- 1400 × 120 × 1000
- Finish
- SUS304
- Passage
- 600–1000 mm
- Drive
- Brushless motor
- Opens
- 0.9 s

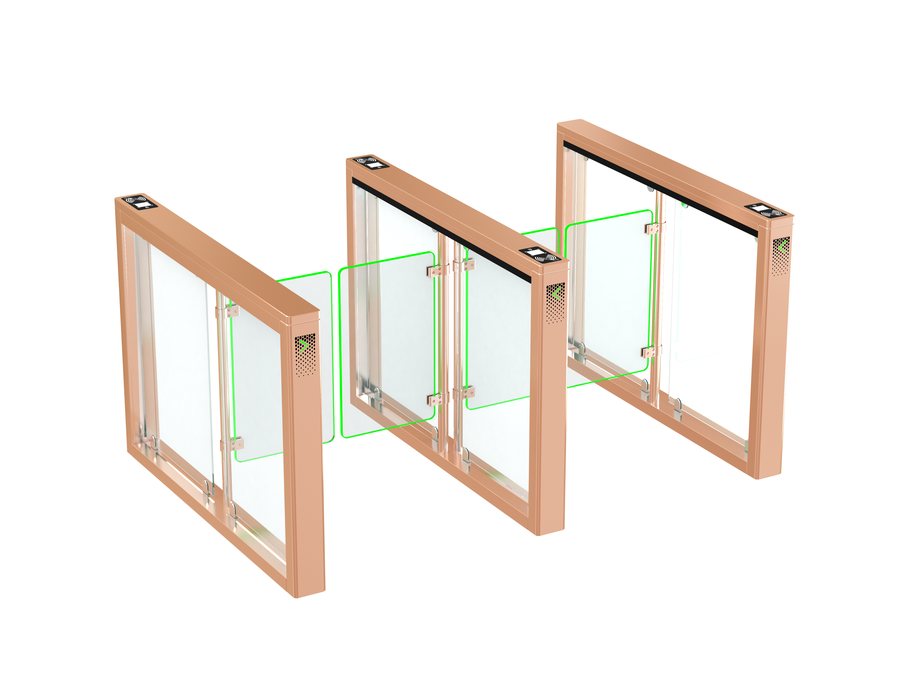

KSB1412-GHigh-throughput QR, events
- Size
- 1400 × 120 × 1000
- Finish
- Electroplated stainless steel, anti-fingerprint
- Passage
- 600–1000 mm
- Drive
- Brushless motor
- Opens
- 0.9 s
KSB1000Entry level, basic access control
- Size
- 200 × 180 × 1090
- Finish
- SUS304
- Passage
- 600–800 mm
- Drive
- Brushed motor
- Opens
- 1 s (adj.)

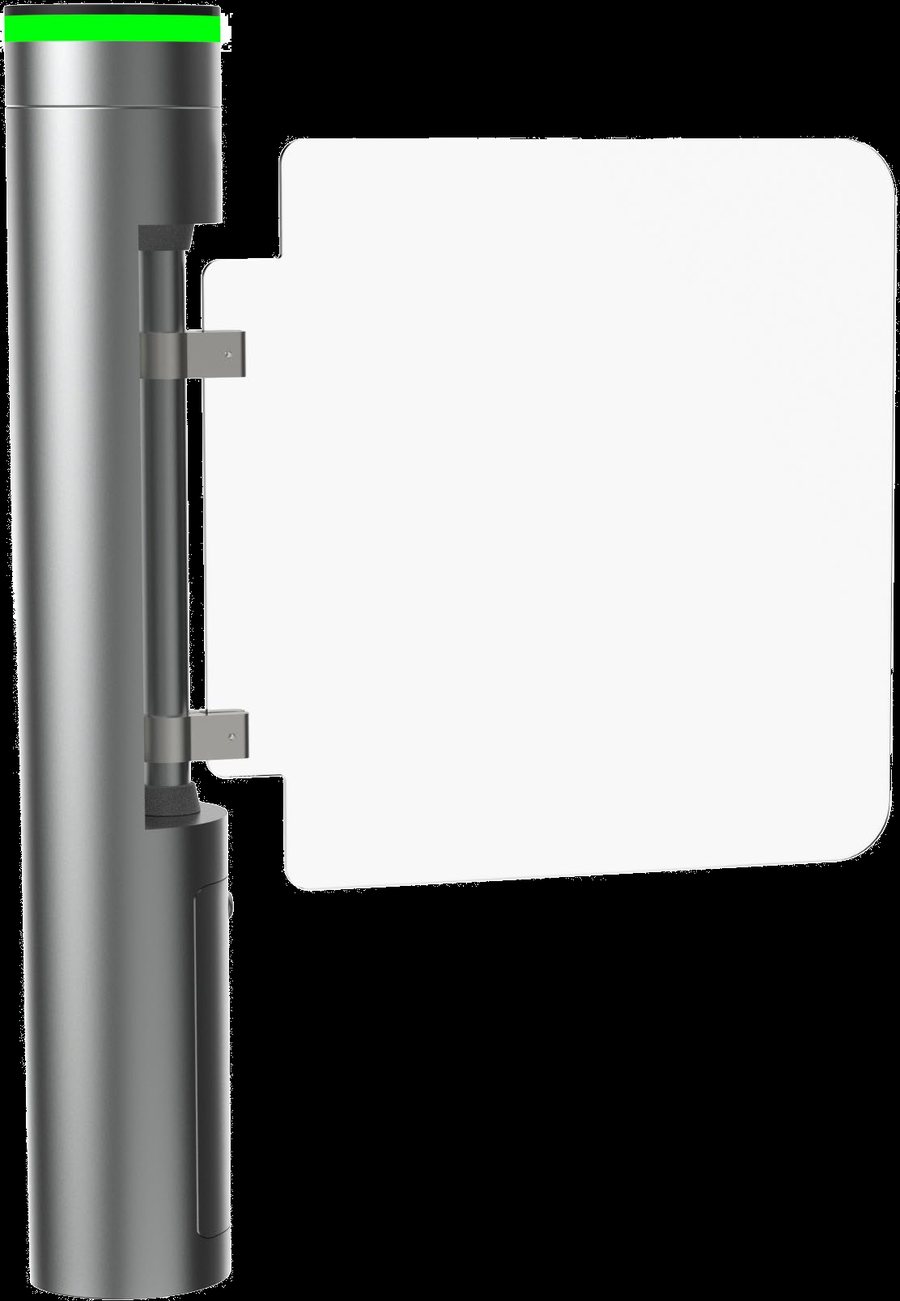

KSB1000REntry level, small projects
- Size
- Ø168 × 990
- Finish
- SUS304
- Passage
- 600–900 mm
- Drive
- Brushed motor
- Opens
- 1 s (adj.)
Special Purpose Gates
A lower profile, for spaces where children are expected.
Not barriers for children, but barriers for places where children are among the people passing through: a lower housing at 950 mm, a shorter lane and reinforced anti-pinch protection.

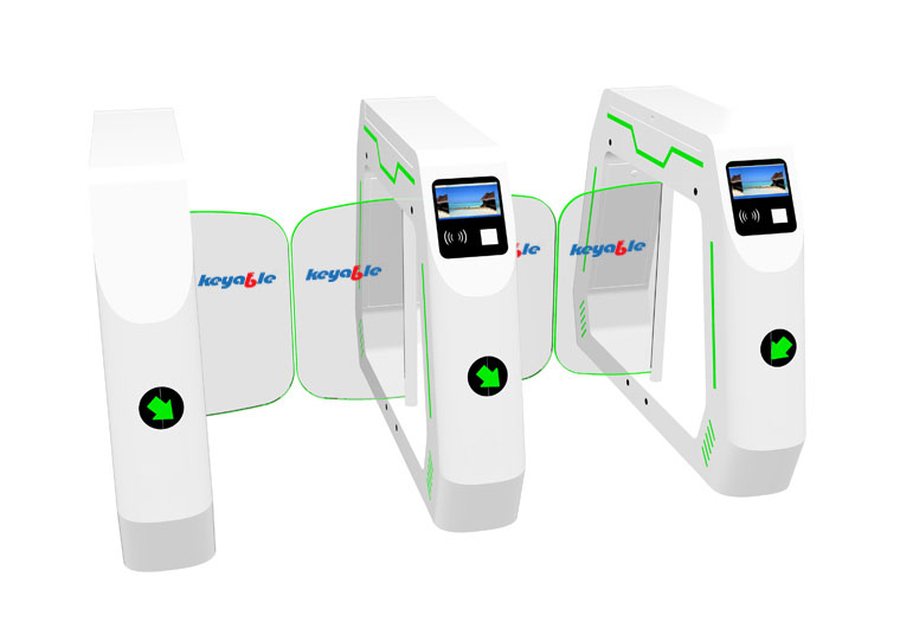

KSB1323-WPlaygrounds, with QR scanner
- Size
- 1300 × 230 × 950
- Finish
- Cold-rolled plate, colour paint
- Passage
- 600 mm
- Drive
- Brushless motor
- Opens
- 0.9 s (adj.)

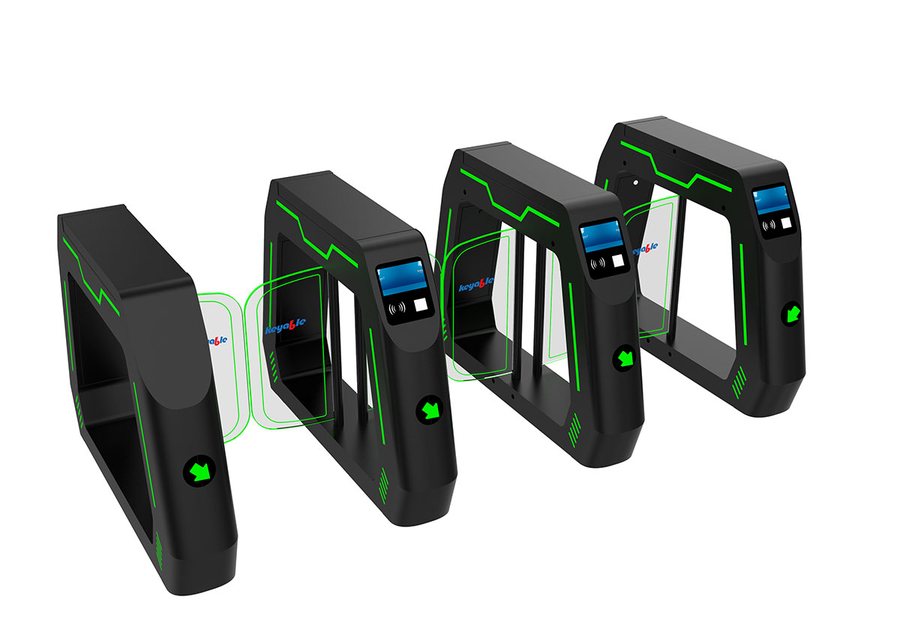

KSB1323-BIndoor playgrounds, QR ticketing
- Size
- 1300 × 230 × 950
- Finish
- Cold-rolled plate, colour paint
- Passage
- 600 mm
- Drive
- Brushless motor
- Opens
- 0.9 s (adj.)

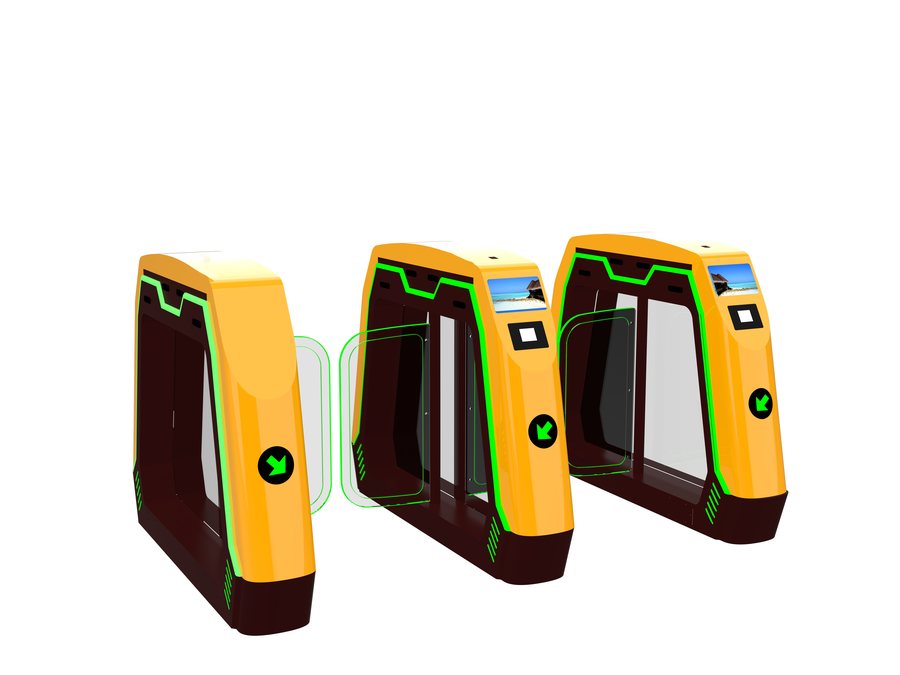

KSB1323-YAmusement parks, smart QR ticketing
- Size
- 1300 × 230 × 950
- Finish
- Cold-rolled plate, colour paint
- Passage
- 600 mm
- Drive
- Brushless motor
- Opens
- 0.9 s (adj.)

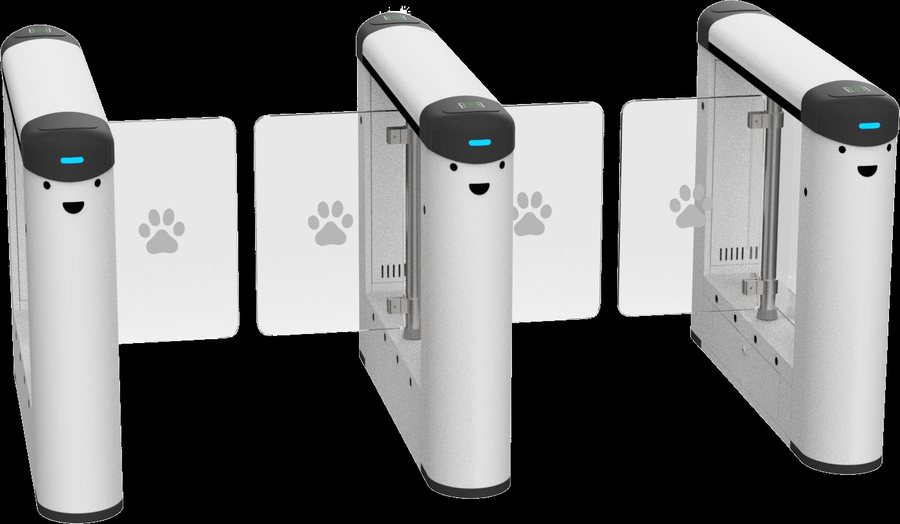

KSB1220CKindergartens and school entrances
- Size
- 1200 × 200 × 900
- Finish
- Cold-rolled plate, colour paint
- Passage
- 600 mm
- Drive
- Brushless motor
- Opens
- 0.9 s (adj.)
KSB1228CKindergartens and early education
- Size
- 1200 × 280 × 900
- Finish
- Cold-rolled plate, colour paint
- Passage
- 600 mm
- Drive
- Brushless motor
- Opens
- 0.9 s (adj.)
Common Questions
Answers, briefly.
What is a swing barrier?
A swing barrier is a motorised pedestrian gate whose glass arm swings open on authorisation. It offers the widest passage of any barrier type, which is why it is chosen where accessibility matters.
How wide can a swing barrier lane be?
Up to 1000 mm on the KSB1312TD and up to 1100 mm on the KSB1418D. That is wide enough for wheelchairs, pushchairs and luggage without a separate accessible gate.
Can swing barriers be used outdoors?
The KSB1518 is rated by the manufacturer for indoor and outdoor use and carries an anti-fingerprint treatment on electroplated stainless steel.
What finishes are available?
Brushed SUS304, mirror electroplated stainless, champagne gold electroplated, and powder coating in a colour of your choice.
Complete the Lane
A barrier, a reader and a base.
Readers & Controllers
The signal that opens the lane
Barriers are supplied without readers. QR scanners, RFID and NFC readers, controllers and displays are chosen for each lane.
See readers and controllers →Barrier Pedestals
A base made for the barriers
Where the floor is not suitable for fixing, the barriers stand on a pedestal made to measure, for any type of barrier.
See barrier pedestals →
How We Deliver
Three ways to work with us.
Every model in the range is available as a supply-only order, as an installation integrated with the system you already use, or as a complete working solution. The choice is commercial, not technical — the hardware is identical.
01 — Equipment Supply
Hardware for your own integration
You already have an integrator, an access platform and a programme. We deliver the equipment and the paperwork, and stay out of the way.
- Barriers, readers and controllers
- Technical datasheets and dimensioned drawings
- CE marking and EN 17352 declaration
- Delivery to site, anywhere in Europe
- Manufacturer warranty
- Spare parts held in Europe
02 — Installation & Integration
Integrated with the system you already use
We install, commission and integrate Keyable swing barriers with virtually any professional access-control platform capable of exchanging the required commands and credentials. You keep your software; only the entrance changes.
- Everything in supply, plus:
- Site survey
- Installation and mechanical fixing
- Commissioning
- Integration with your existing access-control platform
- Staff handover and documentation
03 — Full-Service Solution
Everything, as one contract
One point of responsibility from site survey and commissioning through long-term local service support. You approve a design and take delivery of a working entrance.
- Everything in installation, plus:
- Software: entitlements, ticketing, attendance, occupancy
- QR, NFC and RFID identification
- Scheduled maintenance and online support
- Local after-sales service
- Extended warranty on the installed system
All three models cover the full range: speed gates, swing, flap and sliding barriers, tripod, full height and half height turnstiles. Scope, response times and warranty terms are set per project and confirmed in the quotation.
