01
Brushless, near-silent
A brushless drive opens the lane in 0.7 seconds and holds a low acoustic profile — the movement you feel rather than hear. Servo option available on the compact 1000 range.
Speed Gate
Speed Gates
The signature of a refined lobby. A slim glass profile and quiet brushless movement that reads as furniture, not fortification — with QR, NFC and RFID reading, and finishes from brushed steel to champagne gold.
360° · 3D model
Loading 3D model0%
Drag to rotate
Explore every angle.
A full 3D model of the Keyable KSP1000PLUS compact speed gate, shown with a facial-recognition terminal. Drag to rotate it, scroll or pinch to zoom.
Finish
Brushed StainlessSUS304 · brushed
Also available in champagne gold electroplated, mirror electroplated and custom powder-coat.
At a glance
- DriveBrushless / servo
- Lane width650–1000 mm
- Power110–240 VAC
- CommsTCP/IP · HTTP · API
Key Features
Considered in every detail.
02
Multi-beam safety
A dense infrared sensor array reads presence across the full lane — anti-tailgating and anti-pinch protection that keeps flow safe without slowing it down.
03
QR · NFC · RFID
Read screen and paper QR, NFC and RFID from a single integrated panel (KQT300 / KQR350), linked to ticketing, time-and-attendance and access entitlements.
04
Fail-open by law
On power loss or evacuation the wings release to a free-passage state, as EN 17352 requires for escape routes — safety that is engineered in, not added on.
The Range
16 models in the speed gate family.
Shared electronics, readers and control across the family. What changes is the housing, the finish and the setting each one is built for. Technical figures as published by the manufacturer; a model without figures has not had them published rather than estimated.

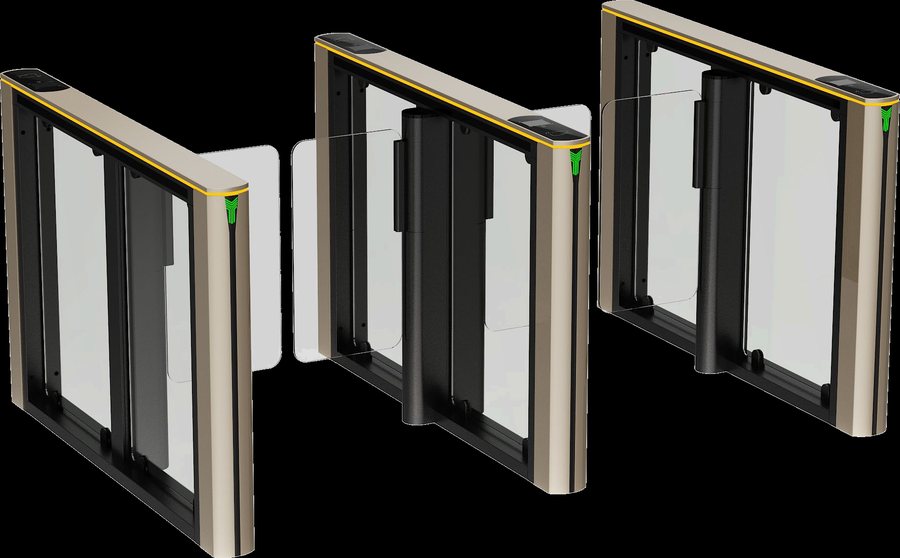

KSP1512TDModern office, aluminium alloy
- Size
- 1500 × 120 × 1010
- Finish
- Aluminum alloy + cold-rolled steel sheet with painted finish
- Passage
- 600–850 mm
- Drive
- Brushless motor
- Opens
- 0.7 s (adj.)

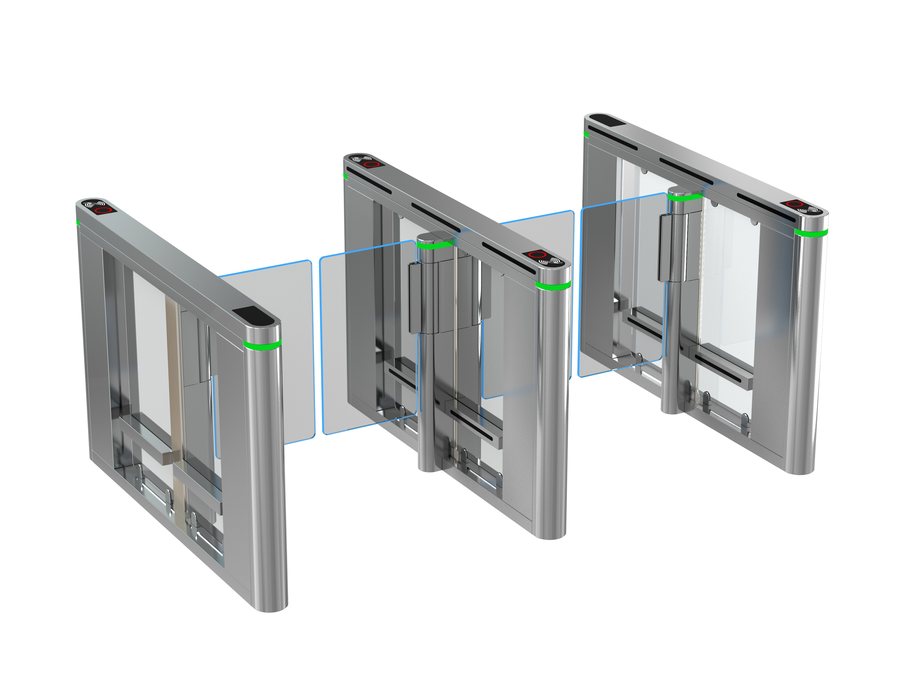

KSP1512RFactory entrance, stainless steel
- Size
- 1500 × 120 × 980
- Finish
- SUS304
- Passage
- 650–900 mm
- Drive
- Servo motor
- Opens
- 0.7 s (adj.)

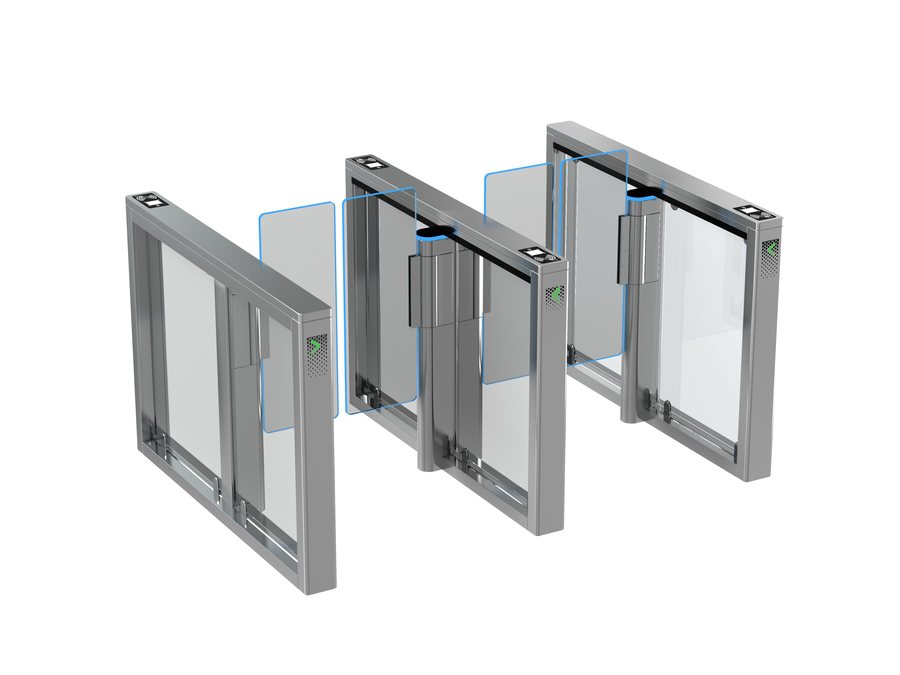

KSP1512Public facility, stainless steel
- Size
- 1500 × 120 × 980
- Finish
- SUS304
- Passage
- 650–900 mm
- Drive
- Servo motor
- Opens
- 0.7 s (adj.)

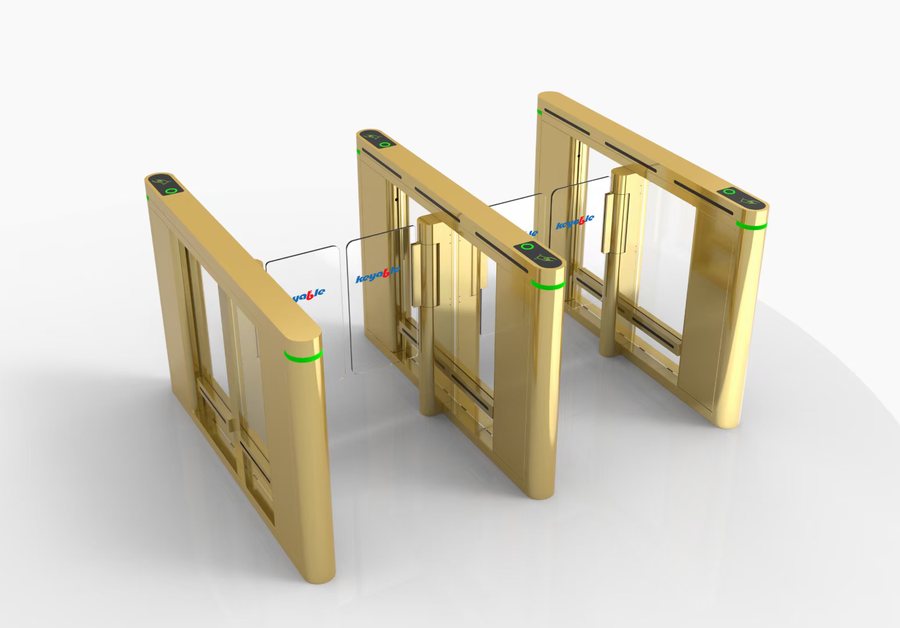

KSP1512E-GLuxury commercial, electroplated
- Finish
- Electroplated stainless steel, anti-fingerprint
- Passage
- 600 mm
- Drive
- Brushless motor
- Opens
- 0.7 s (adj.)

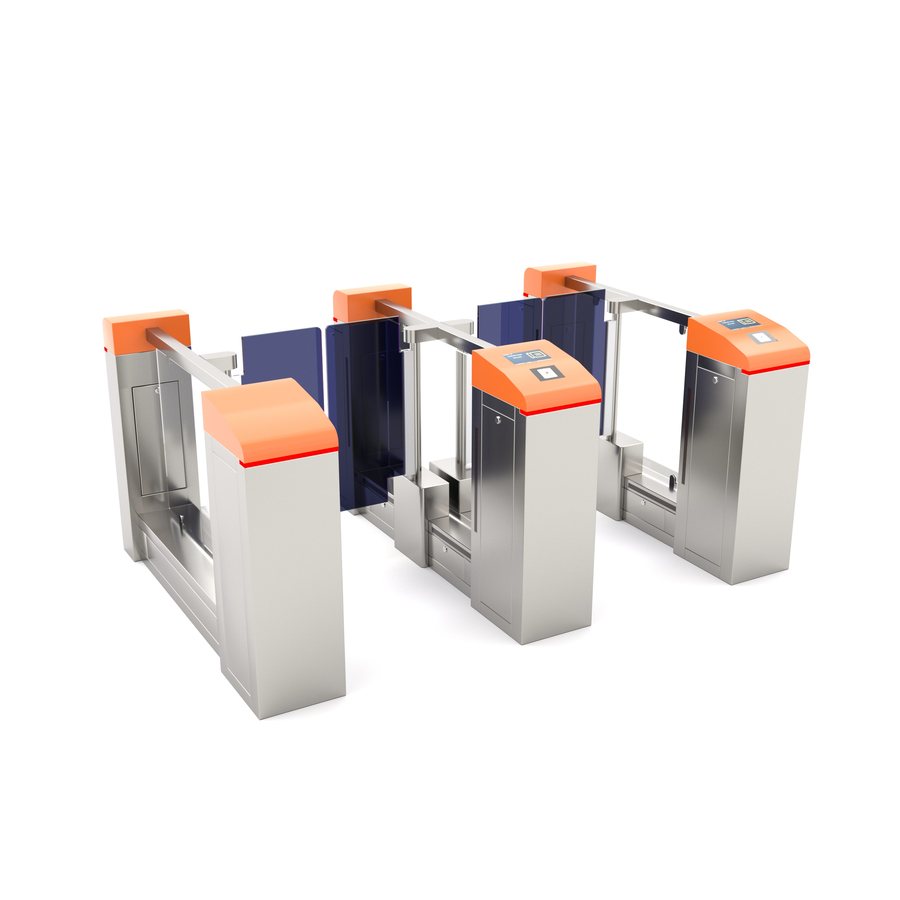

KSP1530PRORail transit, high-throughput ticketing
- Size
- 1500 × 300 × 980
- Finish
- SUS304
- Passage
- 600–800 mm
- Drive
- Servo motor
- Opens
- 0.3–1.5 s (adj.)

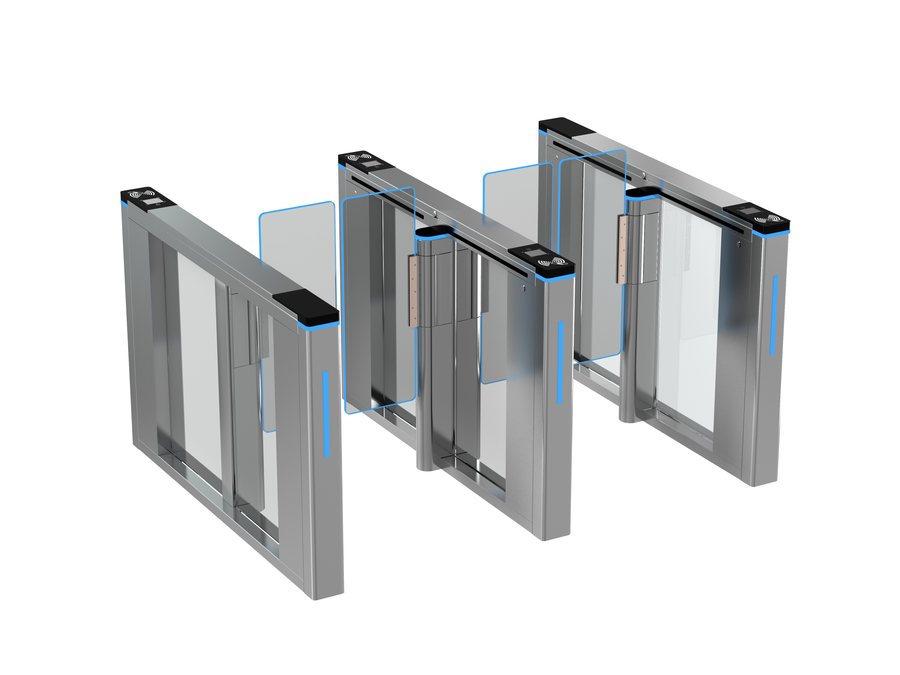

KSP1412Office access, stainless steel
- Size
- 1400 × 120 × 980
- Finish
- SUS304
- Passage
- 650–1200 mm
- Drive
- Brushless motor
- Opens
- 0.7 s (adj.)
KSP1412TDSlim cabinet, room for third-party equipment
- Size
- 1400 × 120 × 980
- Finish
- SUS304
- Passage
- 650–1000 mm
- Drive
- Servo motor

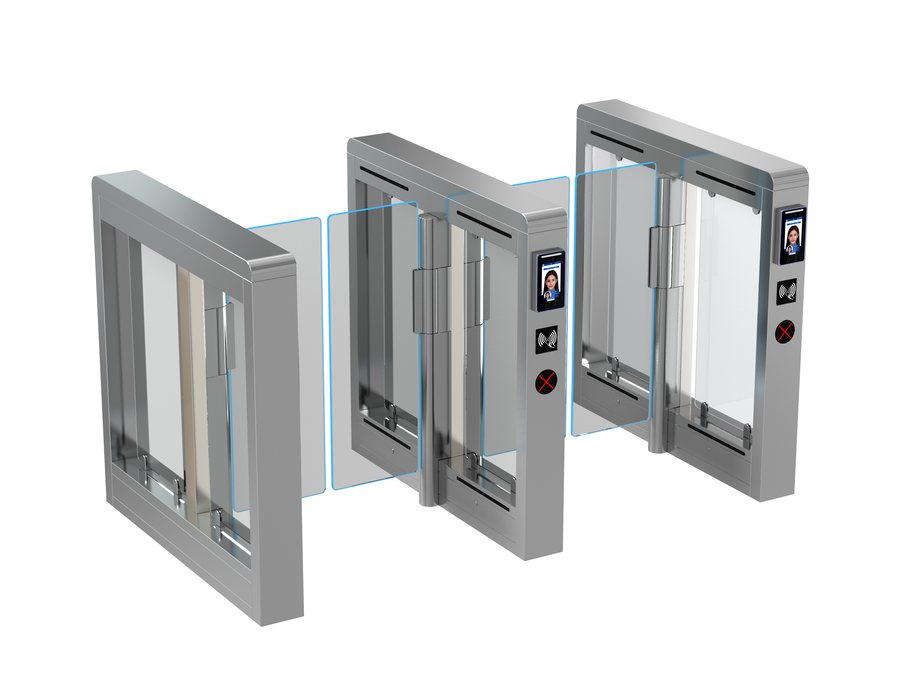

KSP1412HHigh-security facility, full-height anti-climb
- Finish
- SUS304
- Passage
- 600–800 mm
- Drive
- Brushless motor
- Opens
- 0.7 s (adj.)

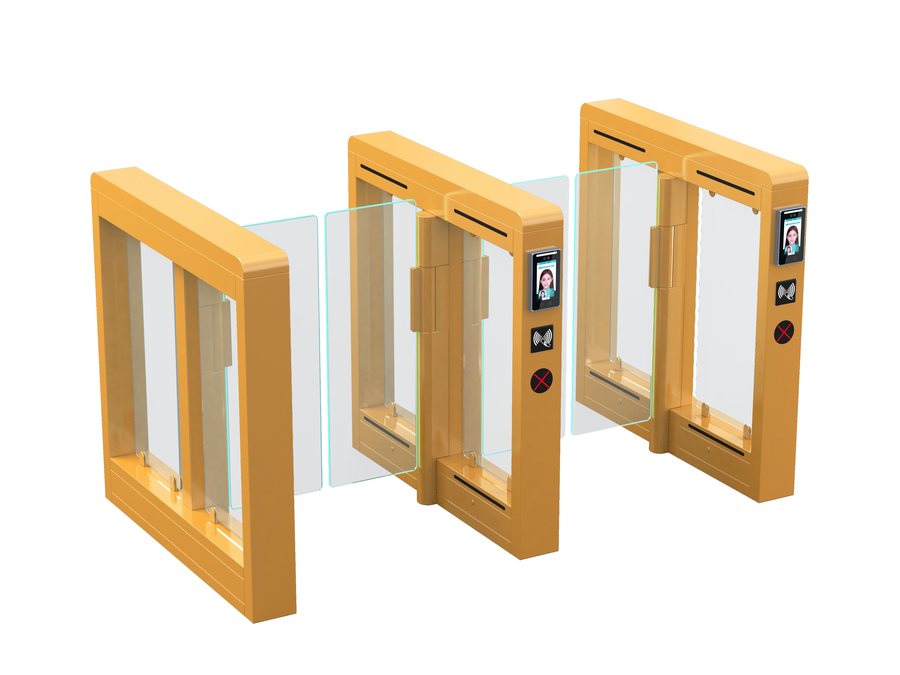

KSP1412H-GIndustrial perimeter, anti-climb
- Finish
- Electroplated stainless steel
- Passage
- 600–800 mm
- Drive
- Brushless motor
- Opens
- 0.7 s (adj.)

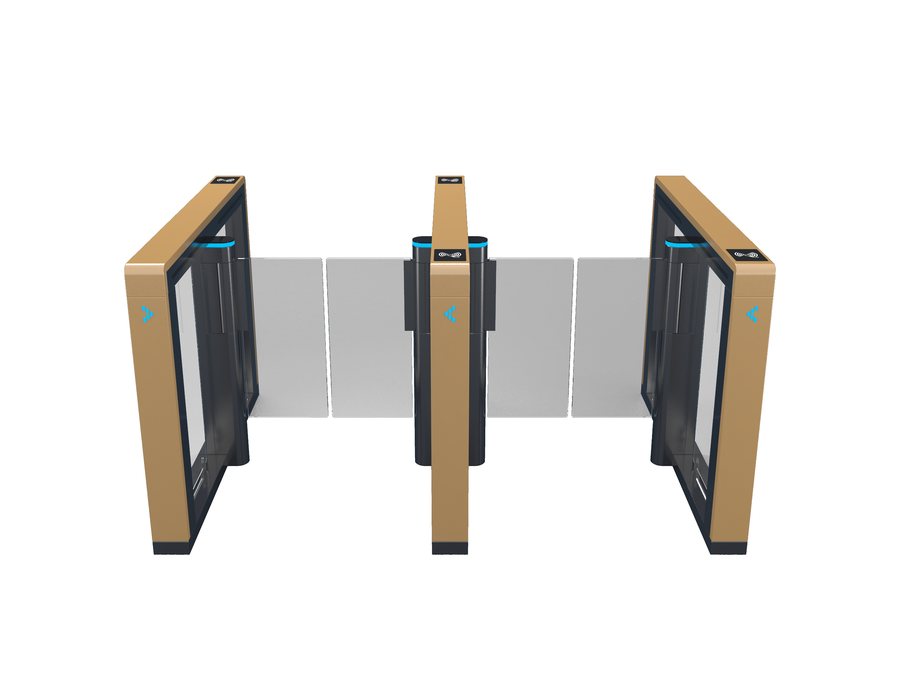

KSP1412YT-BGCommercial building, dual-colour
- Size
- 1400 × 120 × 980
- Finish
- Cold-rolled plate, colour paint
- Passage
- 650–1000 mm
- Drive
- Brushless motor
- Opens
- 0.7 s (adj.)

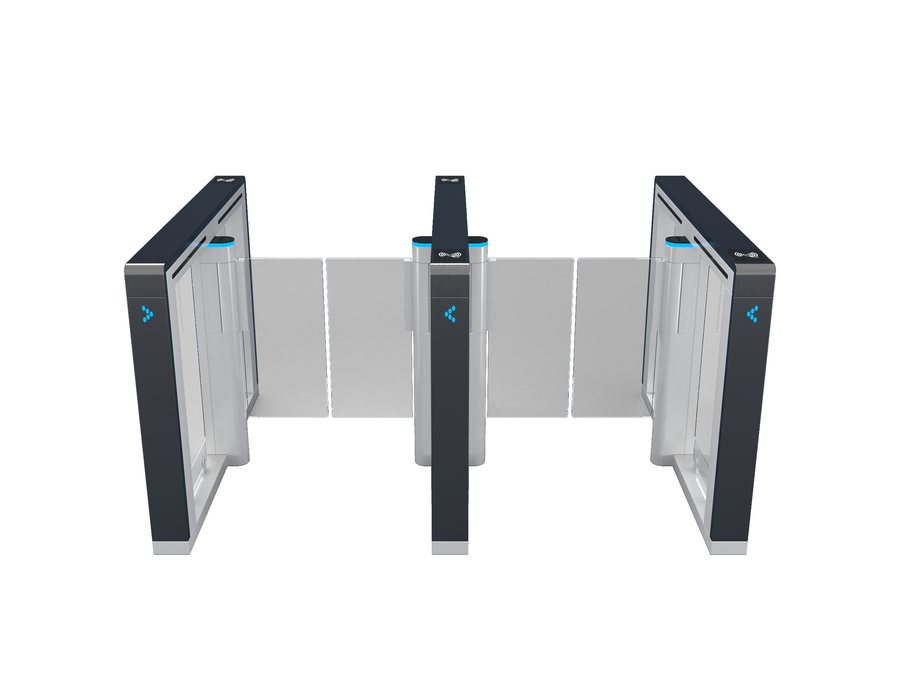

KSP1412YT-WBOffice lobby, dual-tone
- Size
- 1400 × 120 × 980
- Finish
- Cold-rolled plate, colour paint
- Passage
- 650–1000 mm
- Drive
- Brushless motor
- Opens
- 0.7 s (adj.)

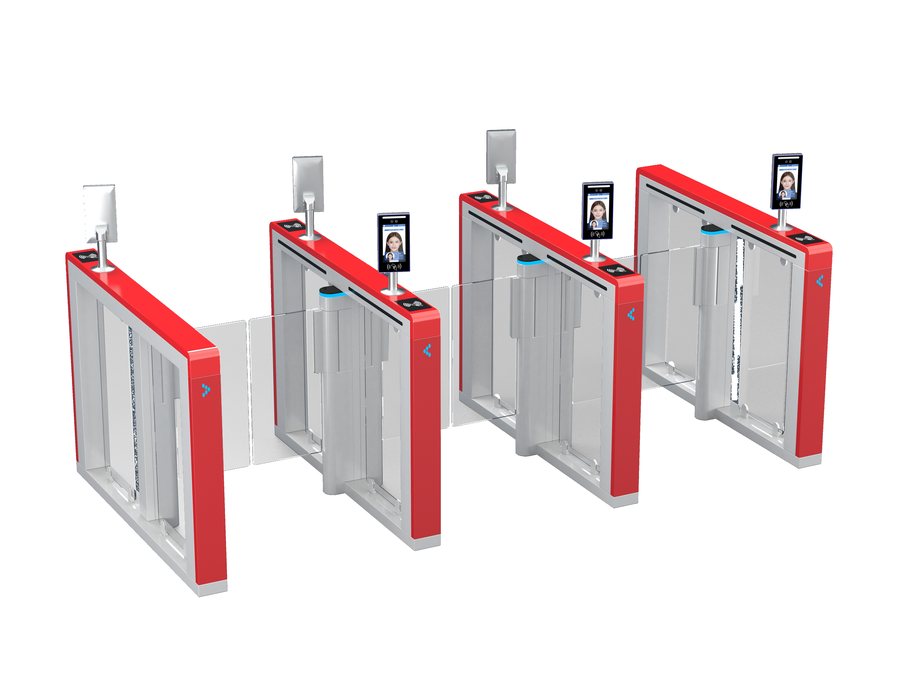

KSP1412YT-WGShopping mall, dual-colour
- Size
- 1400 × 120 × 980
- Finish
- Cold-rolled plate, colour paint
- Passage
- 650–1000 mm
- Drive
- Brushless motor
- Opens
- 0.7 s (adj.)

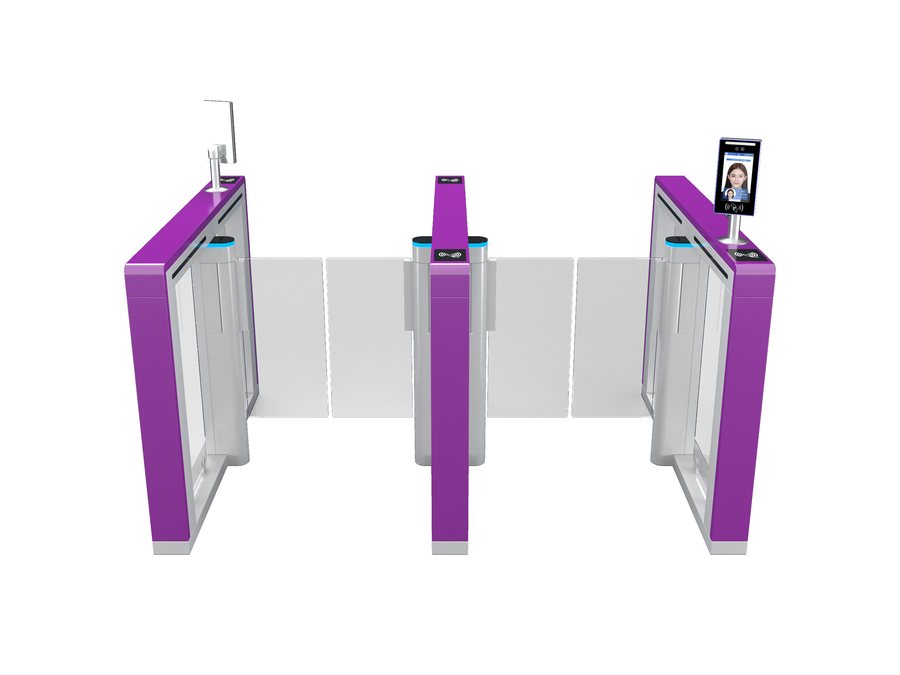

KSP1412YT-WPCorporate entrance, powder coated
- Size
- 1400 × 120 × 980
- Finish
- Cold-rolled plate, colour paint
- Passage
- 650–1000 mm
- Drive
- Brushless motor
- Opens
- 0.7 s (adj.)

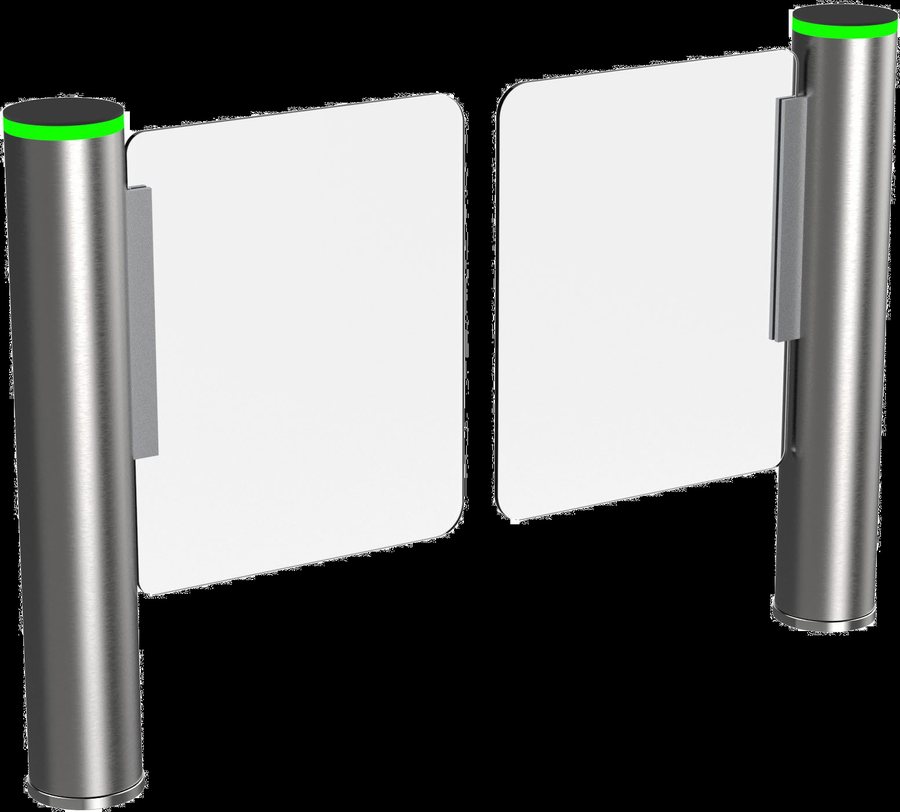

KSP1000Minimalist office, column type
- Size
- Ø168 × 980
- Finish
- SUS304
- Passage
- 600–900 mm
- Drive
- Servo motor
- Opens
- 0.4 s (adj.)

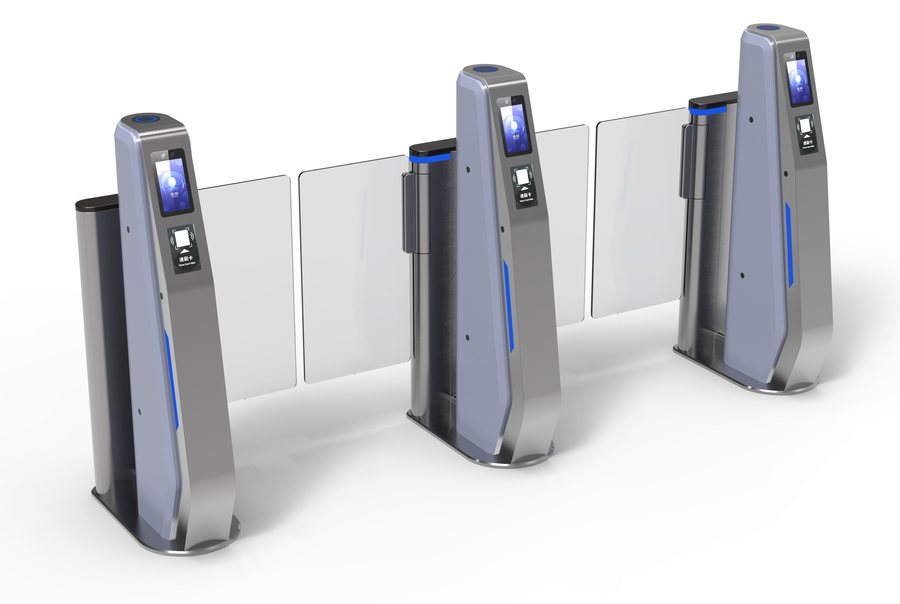

KSP1000PLUSCompact office, mini
- Finish
- SUS304
- Passage
- 600–900 mm
- Drive
- Servo motor
- Opens
- 0.4 s (adj.)

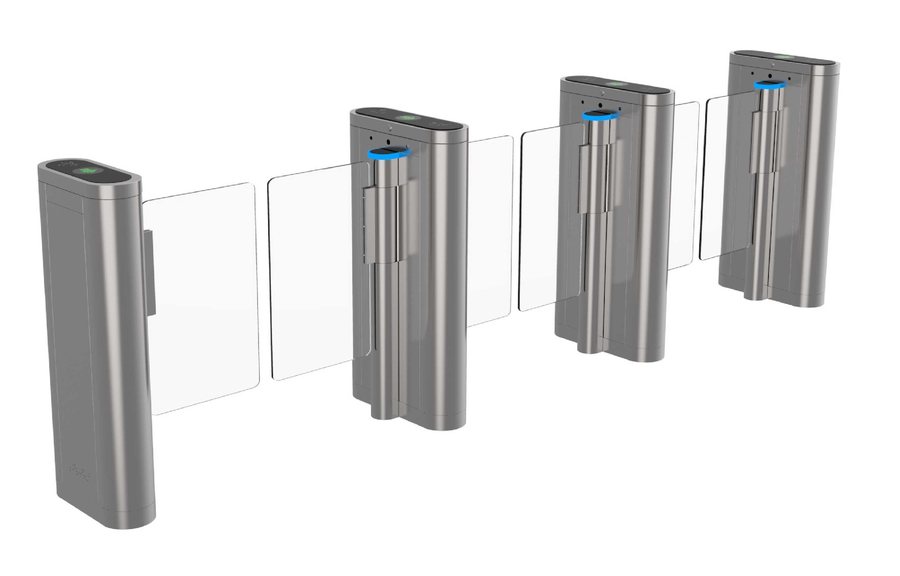

KSP600Retail store, mini
- Finish
- SUS304
- Passage
- 650–900 mm
- Drive
- Servo motor
- Opens
- 0.7 s (adj.)
Common Questions
Answers, briefly.
What is a speed gate?
A speed gate is a motorised pedestrian barrier with frameless glass wings that open on authorisation and close behind each person. It is the fastest form of entrance control, designed for lobbies where appearance and throughput both matter.
How fast is a Keyable speed gate?
The published open cycle is 0.7 seconds, adjustable, giving a throughput of up to 50 people per minute per lane. Figures as published by the manufacturer.
Do speed gates open automatically in a power cut?
Yes. Under EN 17352, motorised pedestrian barriers on escape routes must leave the way out clear. Keyable speed gates release their wings to free passage on power loss and remain open.
What credentials can a speed gate read?
QR codes from a screen or paper, NFC and RFID, through an integrated reader panel. Communication with the access platform is over TCP/IP or HTTP.
Complete the Lane
A barrier, a reader and a base.
Readers & Controllers
The signal that opens the lane
Barriers are supplied without readers. QR scanners, RFID and NFC readers, controllers and displays are chosen for each lane.
See readers and controllers →Barrier Pedestals
A base made for the barriers
Where the floor is not suitable for fixing, the barriers stand on a pedestal made to measure, for any type of barrier.
See barrier pedestals →
How We Deliver
Three ways to work with us.
Every model in the range is available as a supply-only order, as an installation integrated with the system you already use, or as a complete working solution. The choice is commercial, not technical — the hardware is identical.
01 — Equipment Supply
Hardware for your own integration
You already have an integrator, an access platform and a programme. We deliver the equipment and the paperwork, and stay out of the way.
- Barriers, readers and controllers
- Technical datasheets and dimensioned drawings
- CE marking and EN 17352 declaration
- Delivery to site, anywhere in Europe
- Manufacturer warranty
- Spare parts held in Europe
02 — Installation & Integration
Integrated with the system you already use
We install, commission and integrate Keyable speed gates with virtually any professional access-control platform capable of exchanging the required commands and credentials. You keep your software; only the entrance changes.
- Everything in supply, plus:
- Site survey
- Installation and mechanical fixing
- Commissioning
- Integration with your existing access-control platform
- Staff handover and documentation
03 — Full-Service Solution
Everything, as one contract
One point of responsibility from site survey and commissioning through long-term local service support. You approve a design and take delivery of a working entrance.
- Everything in installation, plus:
- Software: entitlements, ticketing, attendance, occupancy
- QR, NFC and RFID identification
- Scheduled maintenance and online support
- Local after-sales service
- Extended warranty on the installed system
All three models cover the full range: speed gates, swing, flap and sliding barriers, tripod, full height and half height turnstiles. Scope, response times and warranty terms are set per project and confirmed in the quotation.
